The 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial and mobile applications. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve provides precise and reliable control of hydraulic systems. Its compact, monoblock design makes it easy to install and maintain, while its wide operating temperature range (-40°C to +80°C) ensures reliable operation in harsh environments.
| Serie P80 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Manuale e joystick |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 80 L/min (21.2 US gpm) |
| Pressione massima | 315 bar (4600 psi) |
| Attacco di ingresso | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Attacco di uscita | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Dimensione attacco | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

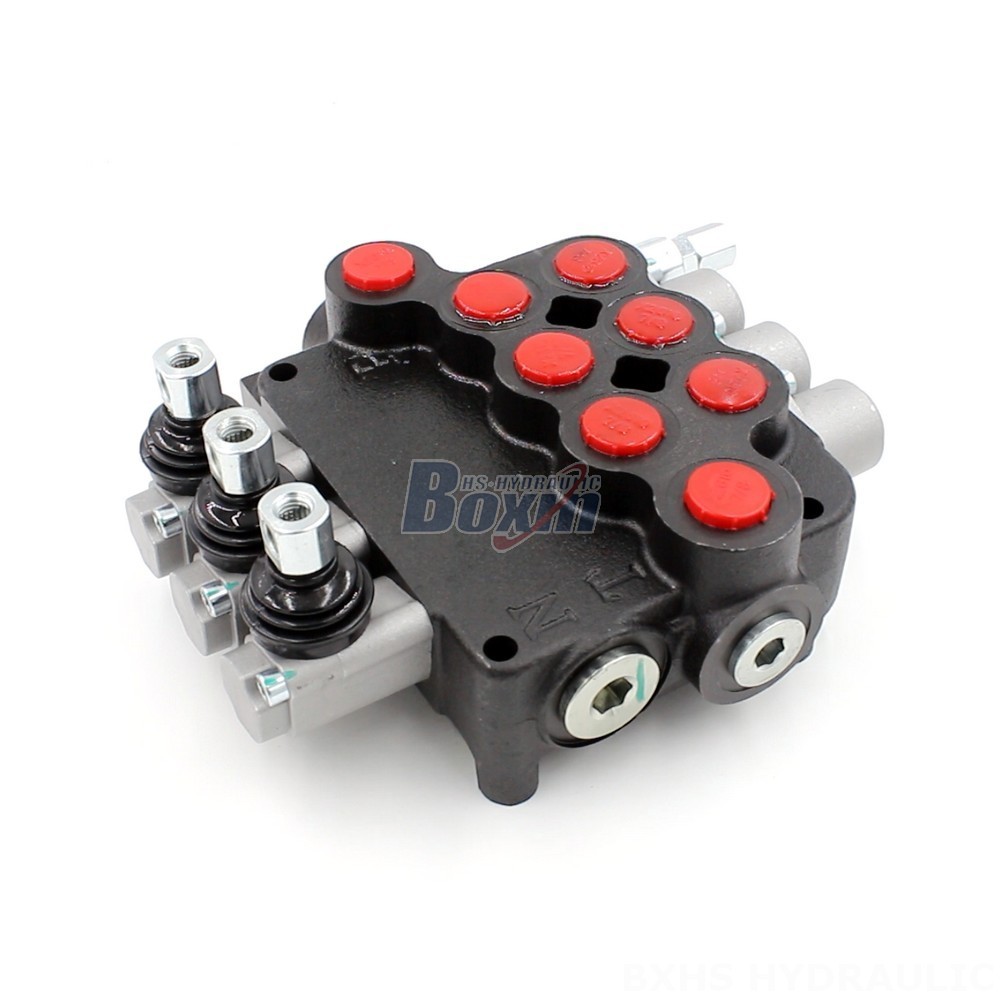

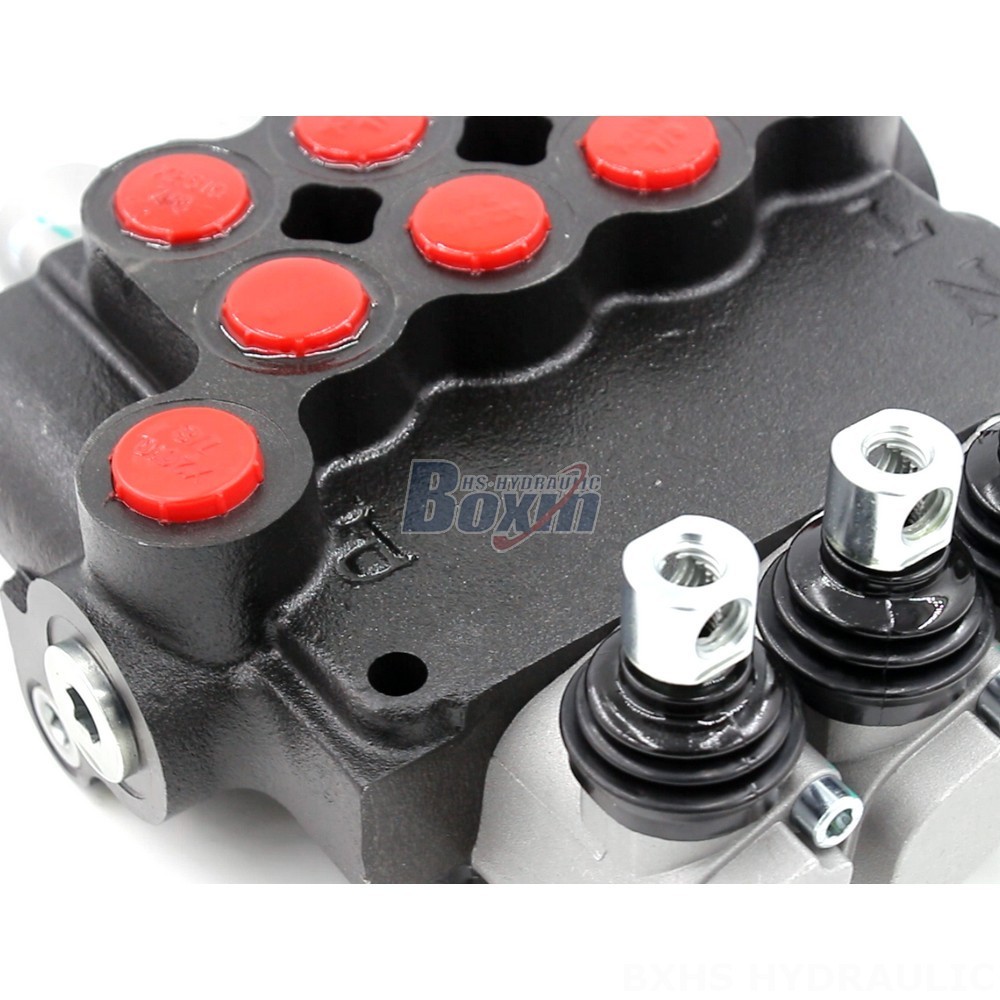

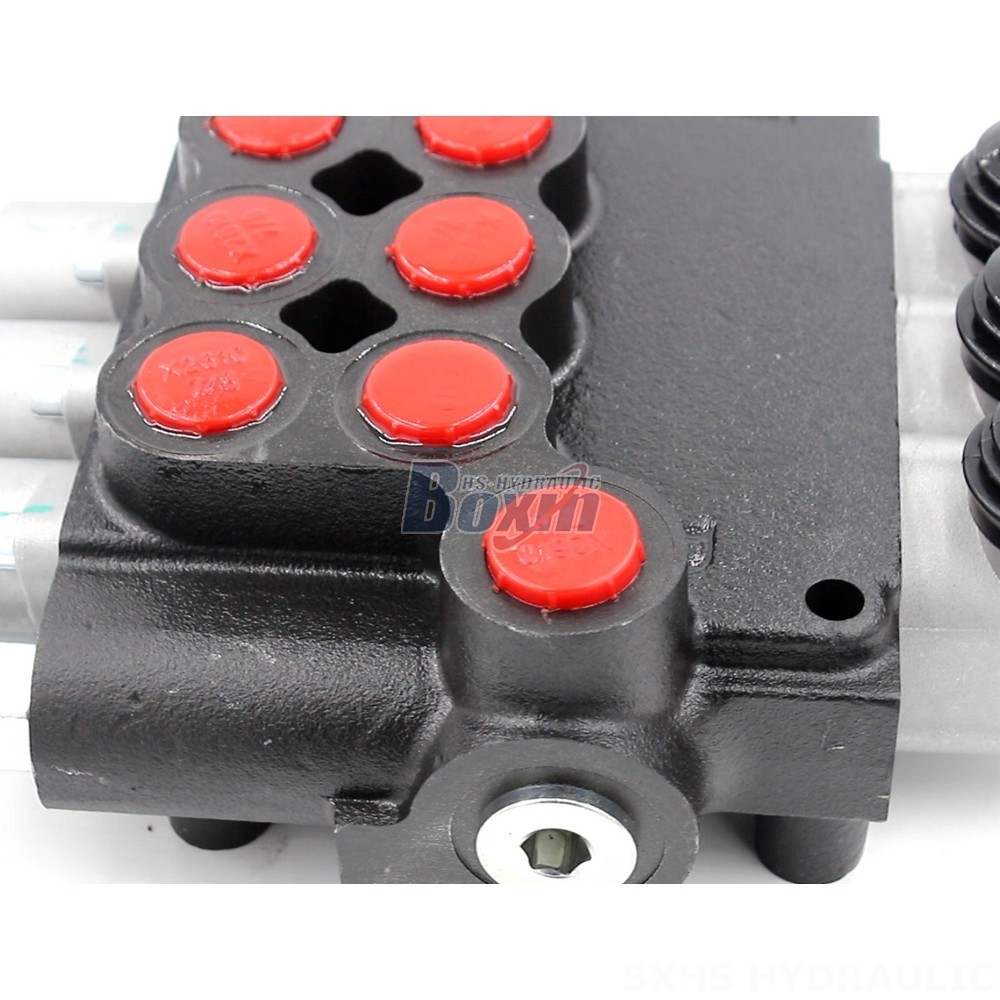

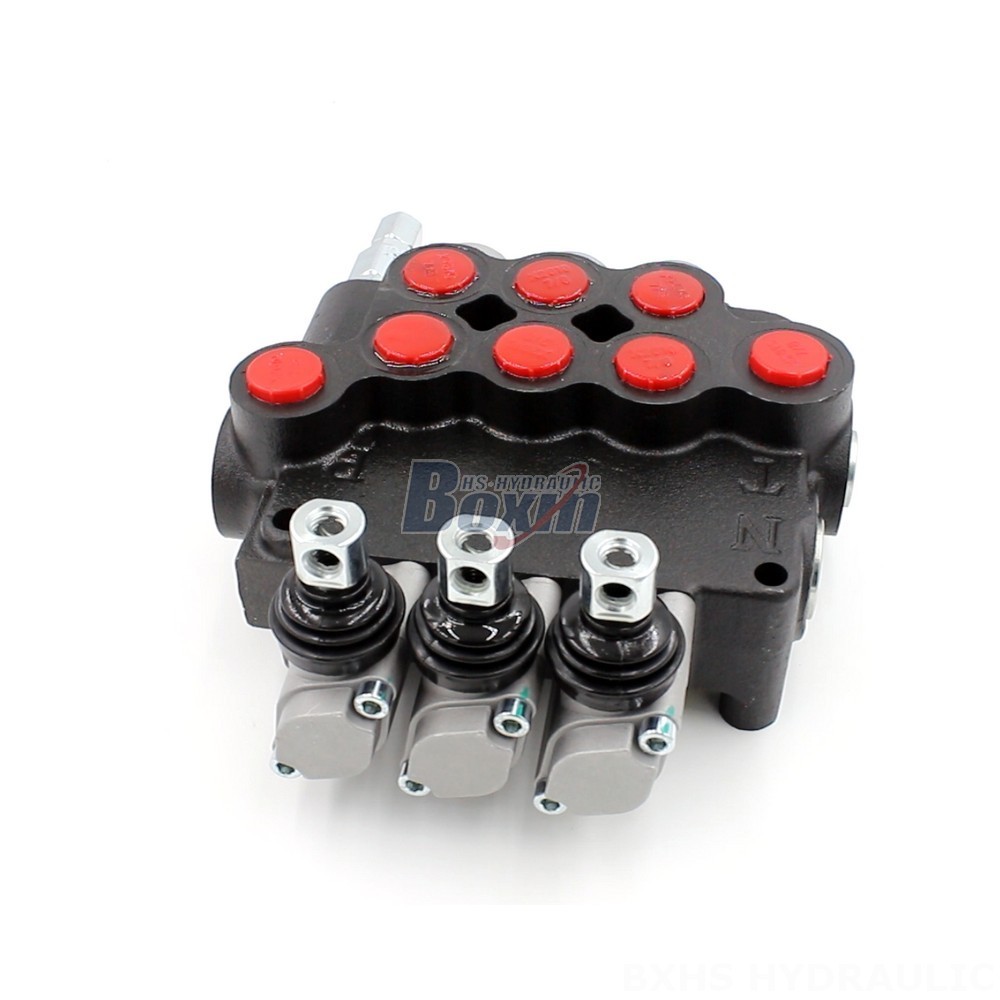

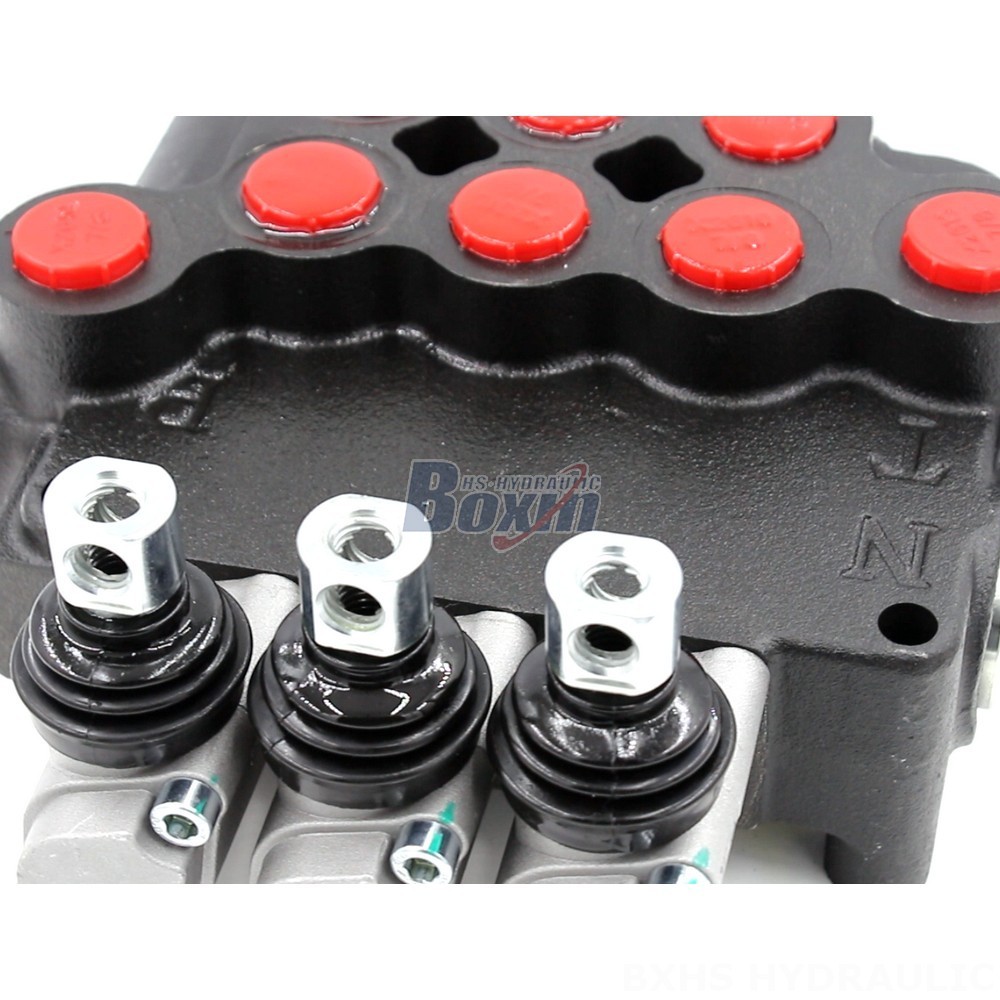

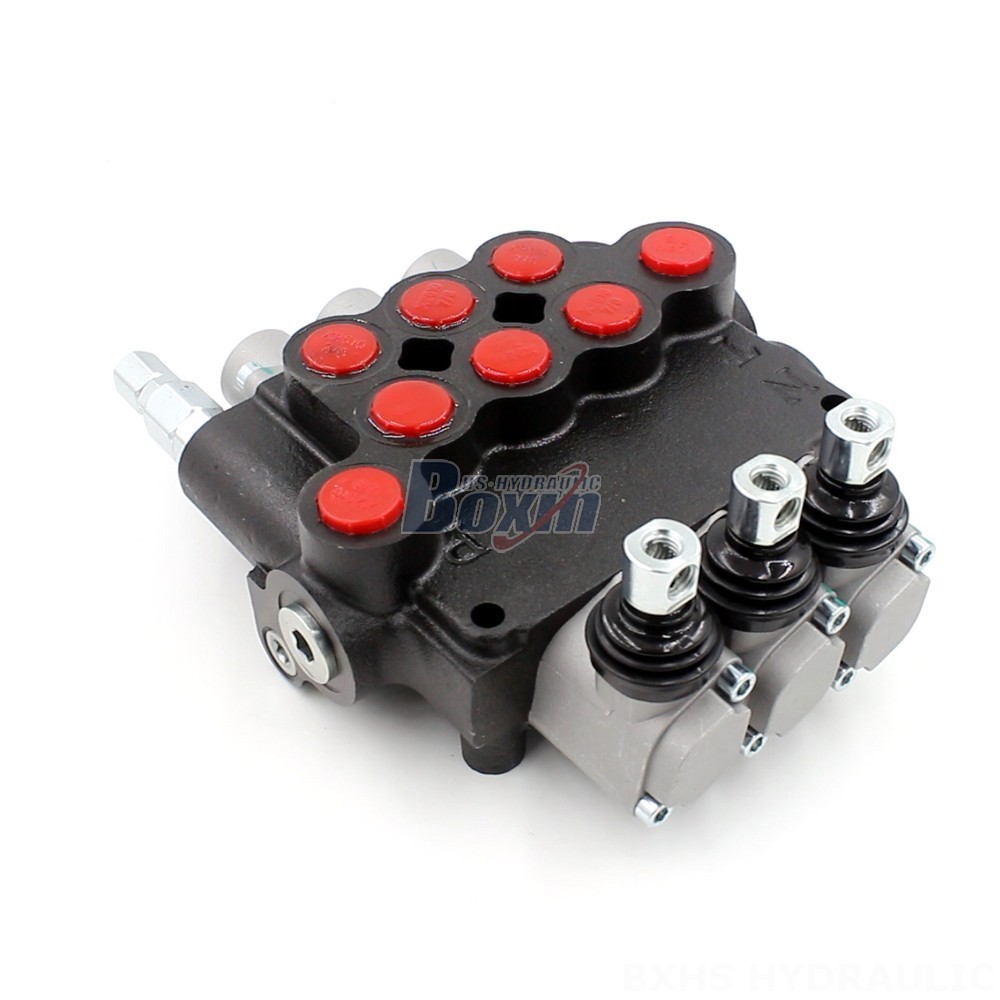

**3 Spool Monoblock Directional Valve for Hydraulic Systems**
**Product Name:** 3 Spool Monoblock Directional Valve for Hydraulic Systems
**Control Method:** Manual
**Section:** 3 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 80 L/min (21.2 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 3 Spool
**Series:** P80 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,TRACTOR AND FRONT-END LOADER
The 3 Spool Monoblock Directional Valve is a high-quality, durable valve that is ideal for use in a variety of applications. Its compact design and ease of installation make it a great choice for OEMs and end-users alike.
