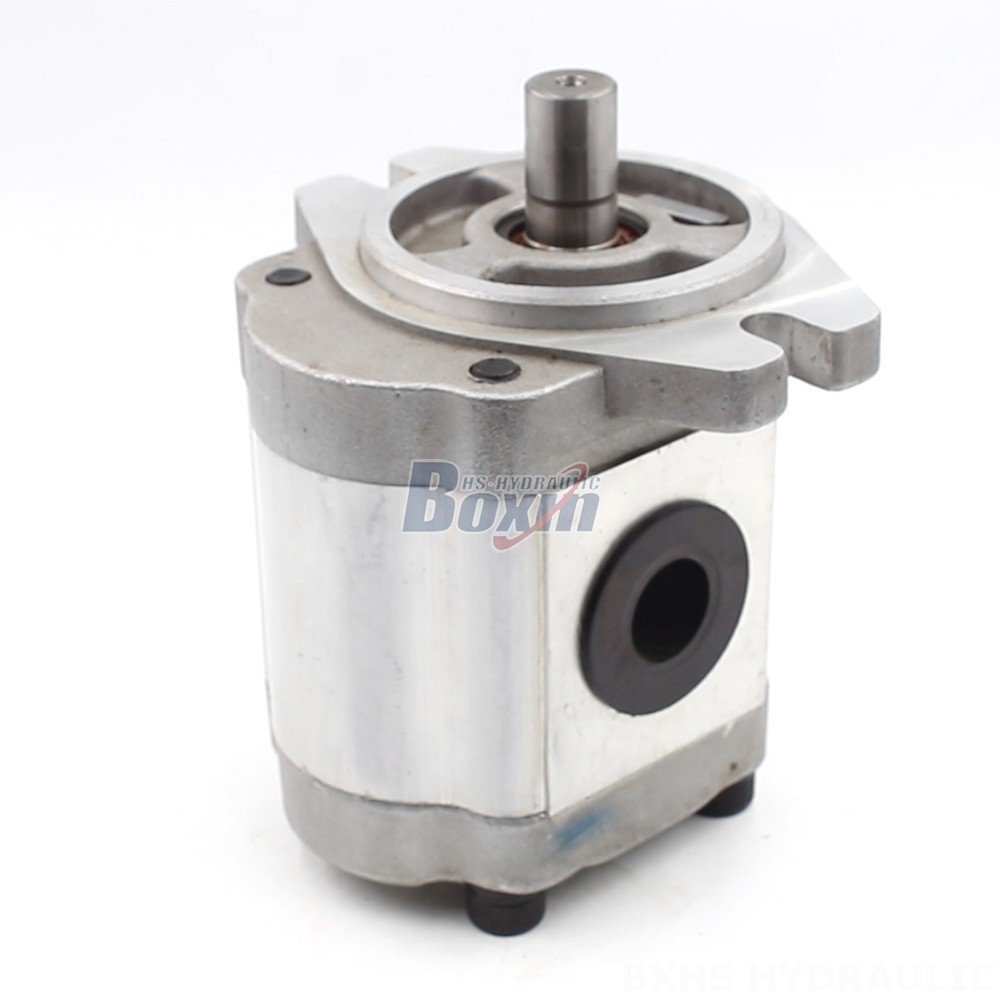

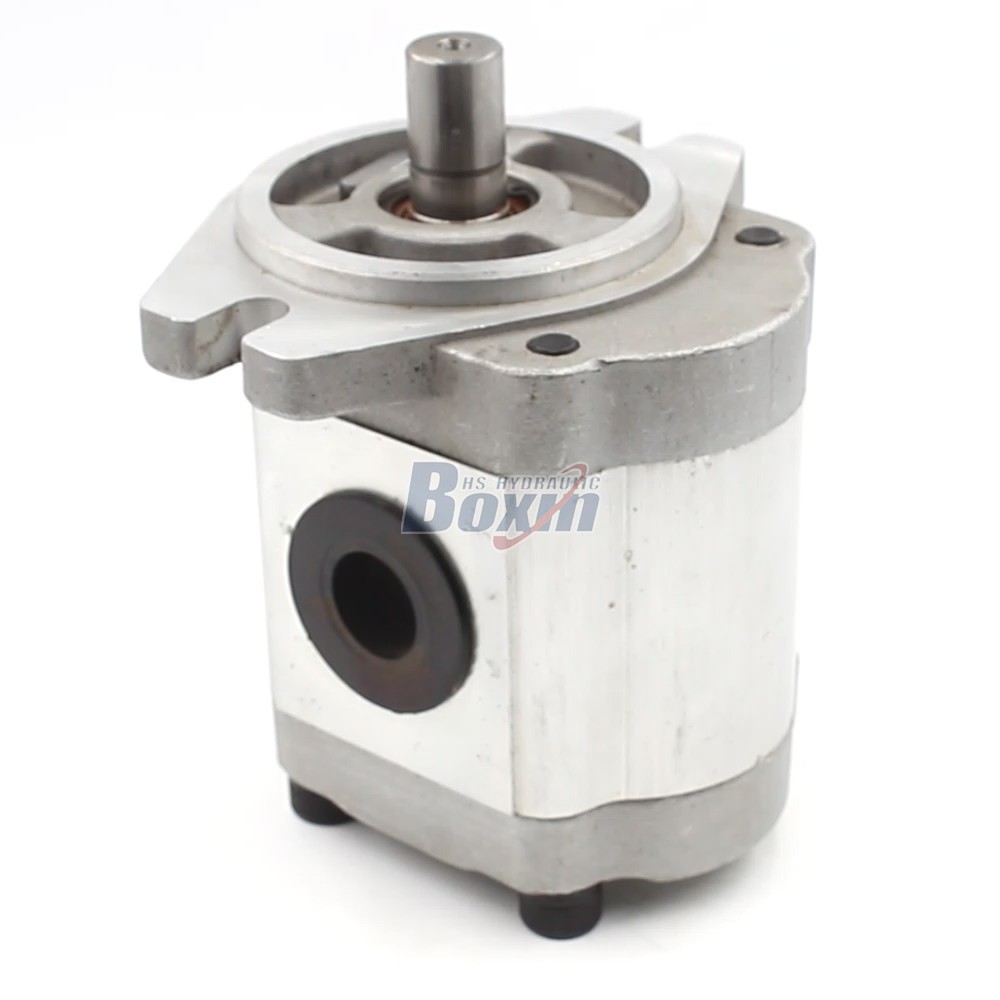

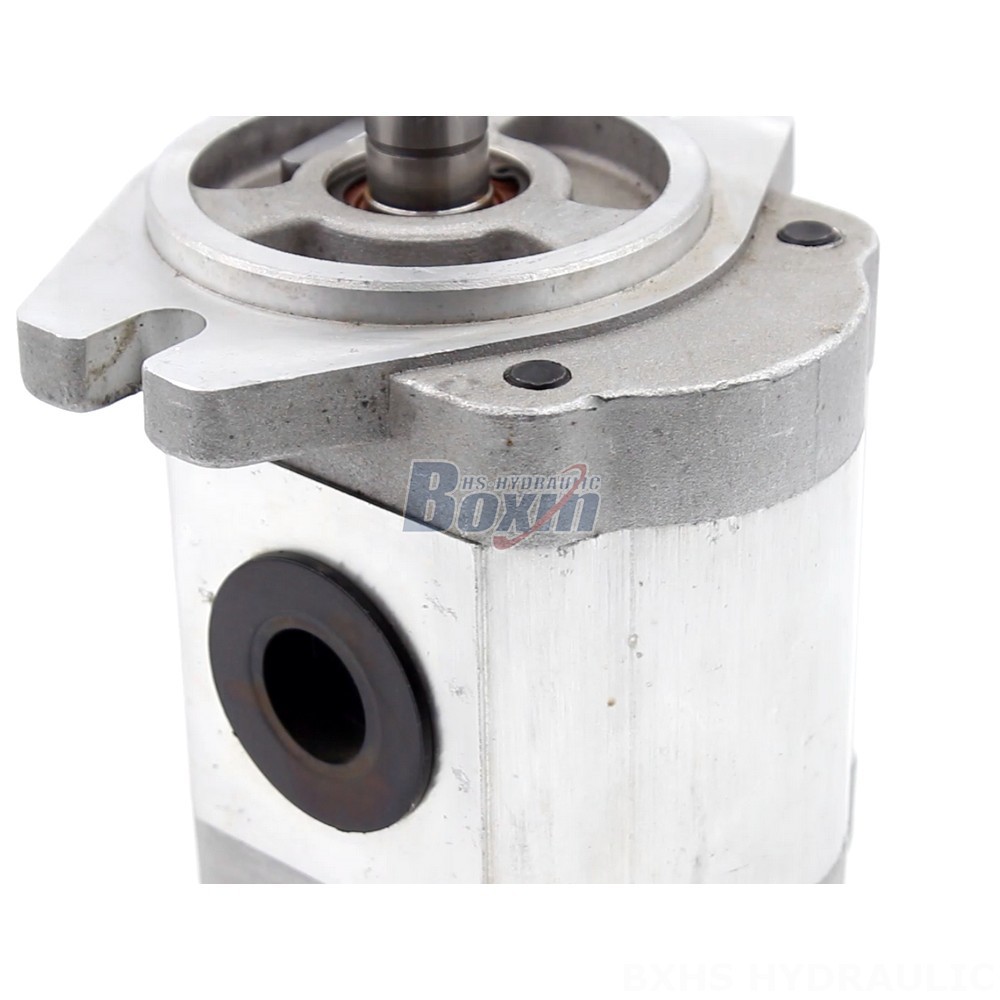

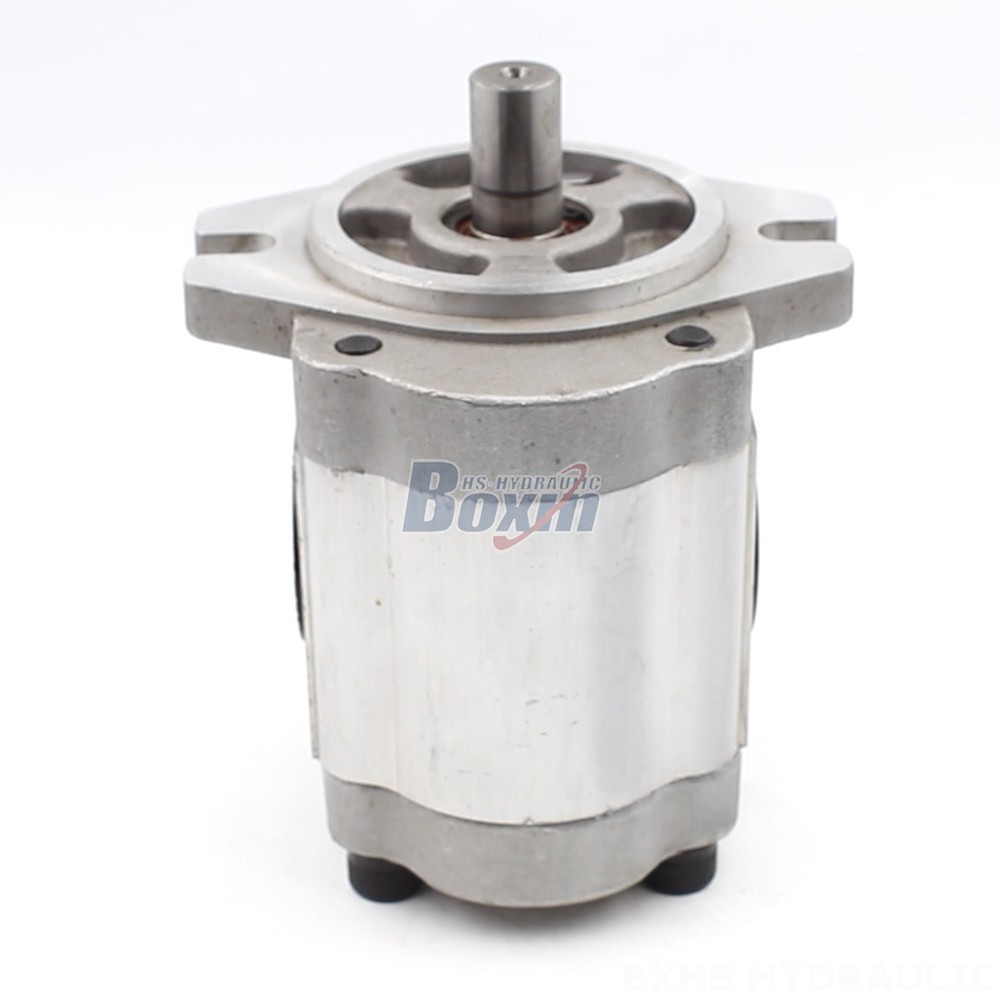

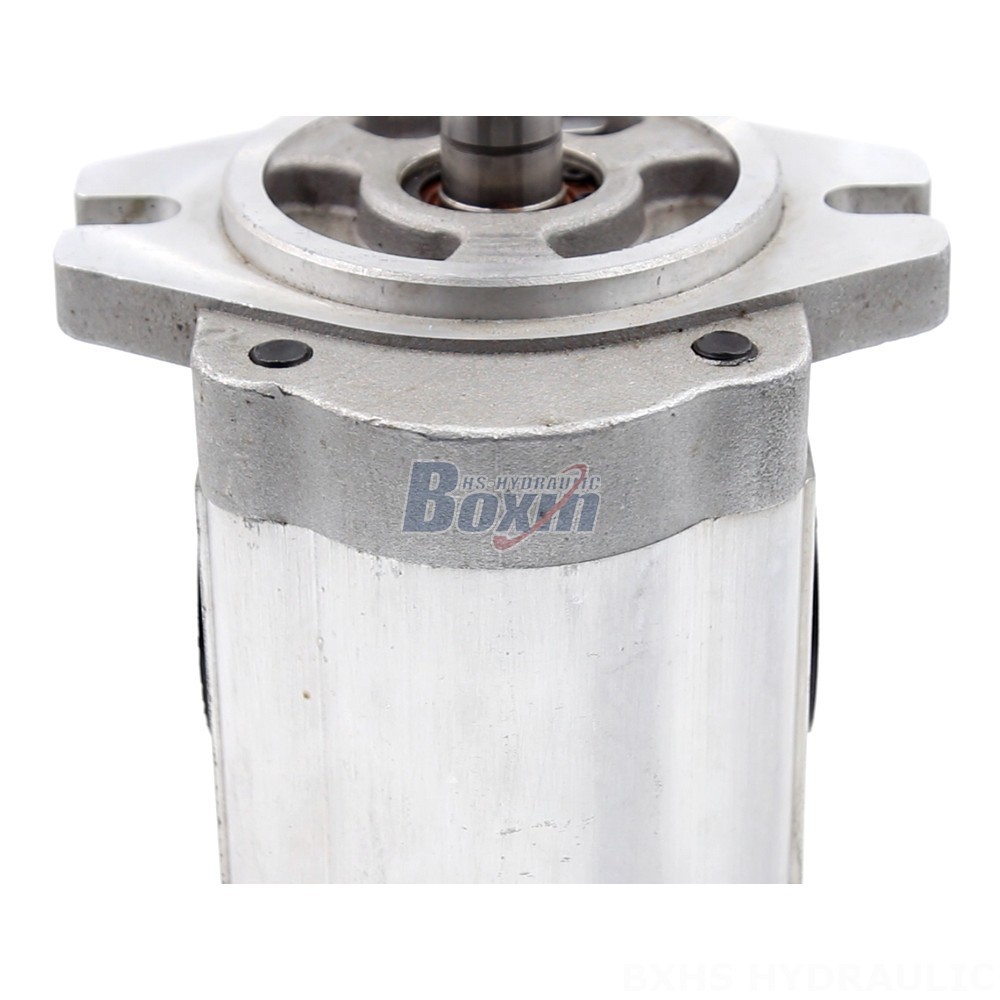

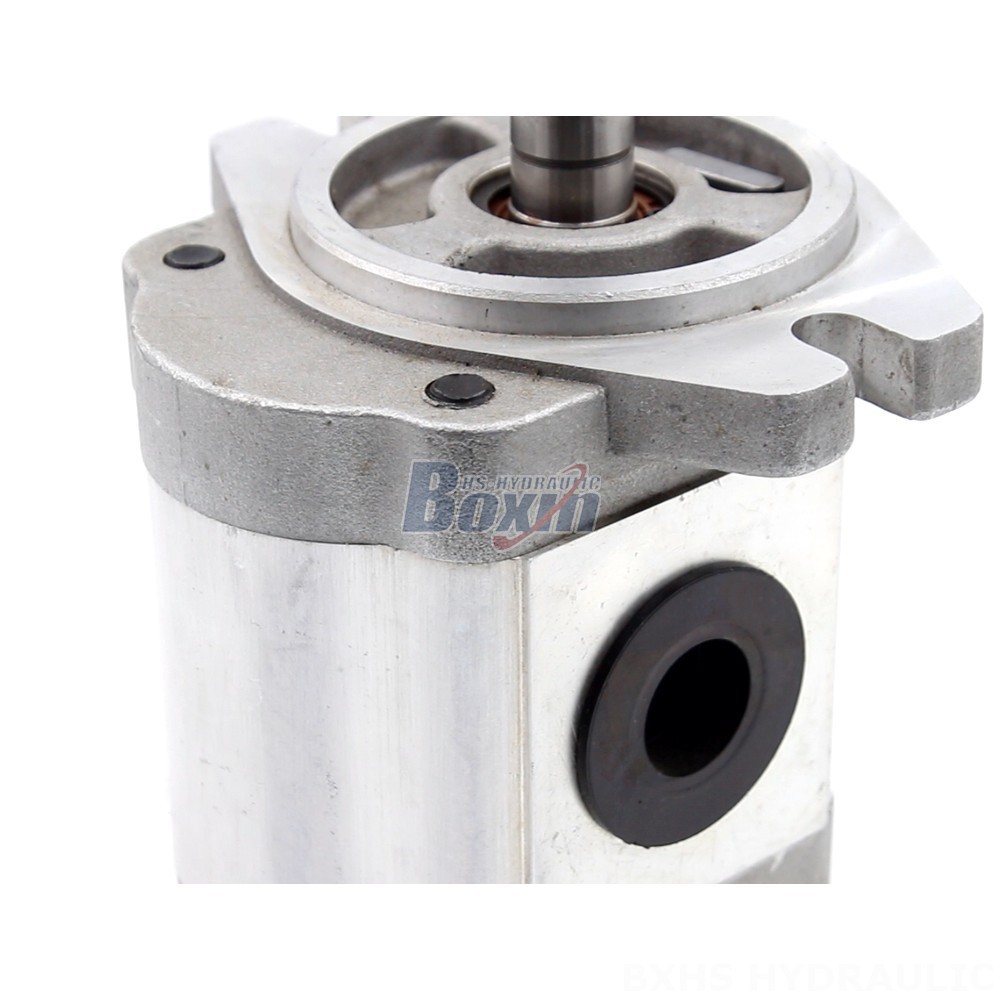

This is a 16 cc/rev hydraulic gear pump with a displacement of 10 cc/rev, rated pressure of 20 MPa (2900 psi), and rated speed of 2000 r/min. It is available in left and right rotation configurations, features an internal gear pump design, and is constructed from aluminium. This pump is suitable for a wide range of applications, including material handling, construction, earth moving, agriculture, and industrial vehicles.
| Serie CBHS-FL3 Pompa a ingranaggi idraulica Parametri | |
|---|---|
| Cilindrata | 10 cc/giro, 4 cc/giro, 20 cc/giro, 16 cc/giro, 14 cc/giro, 6 cc/giro |
| Pressione nominale | 20 MPa (2900 psi) |
| Pressione massima | 25 MPa (3625 psi) |
| Velocità nominale | 2000 giri/min |
| Velocità massima | 3000 giri/min |
| Rotazione | L: Sinistra (in senso antiorario), R: Destra (in senso orario) |
| Materiale | Alluminio |
| Struttura | Pompa a ingranaggi esterna |
| Versione flangia | Flangia a forma ovale di tipo A |
| Tipo di albero | H: Scanalatura rettangolare, X: Scanalatura evolvente, P: Chiave semplice |
This high-performance 16 cc/rev hydraulic gear pump is designed for demanding applications in material handling, construction, earth moving, agriculture, and industrial vehicles. It boasts a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min, with a maximum speed of 3000 r/min. The pump is available in both left (counter-clockwise) and right (clockwise) rotation configurations, and features an internal gear pump design for reliability and efficiency. Constructed from robust aluminium, the pump is equipped with an A-Oval flange and a plain key shaft type. It belongs to the CBHS-FL3 series, known for its durability and performance. This pump is ideal for use in forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini-excavators, midi-excavators, tractors and front-end loaders, harvesters, balers, and sprayers. As a global supplier, we offer manufacturing, OEM, ODM, private labeling, and customization services to meet specific customer requirements.
