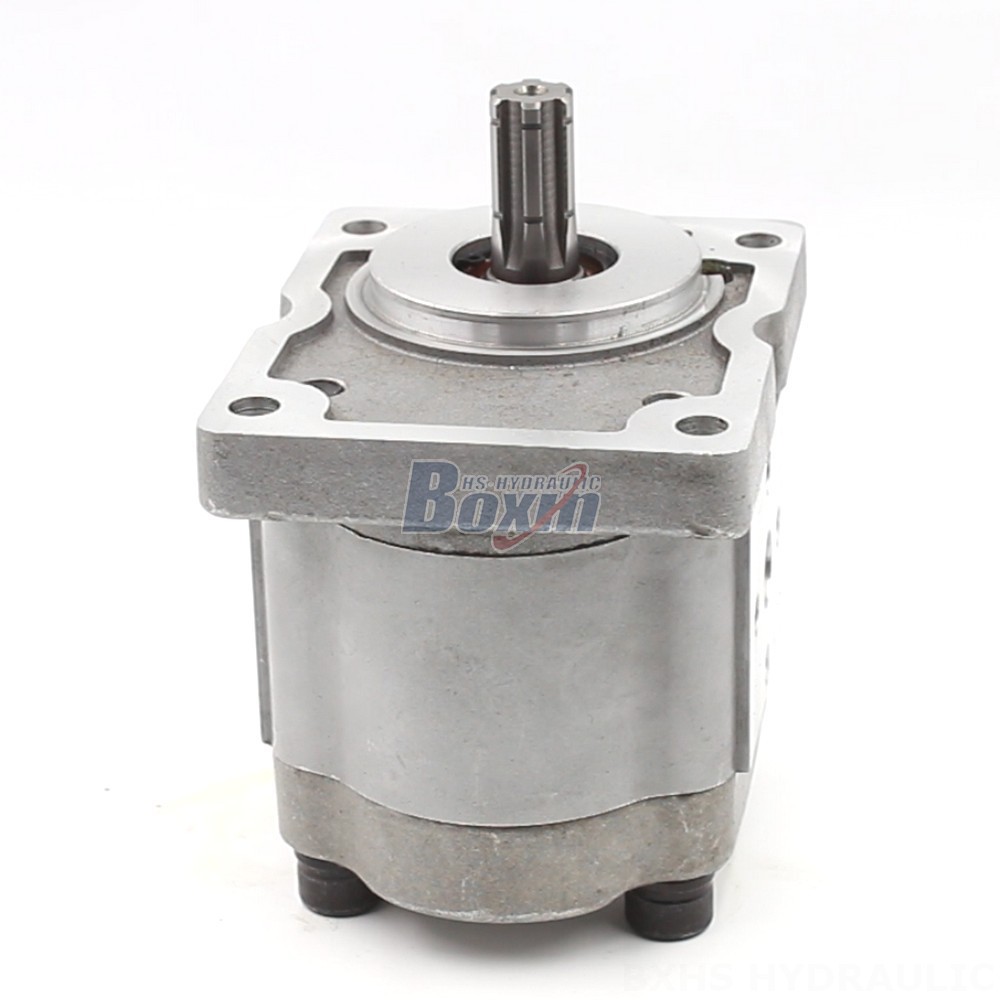

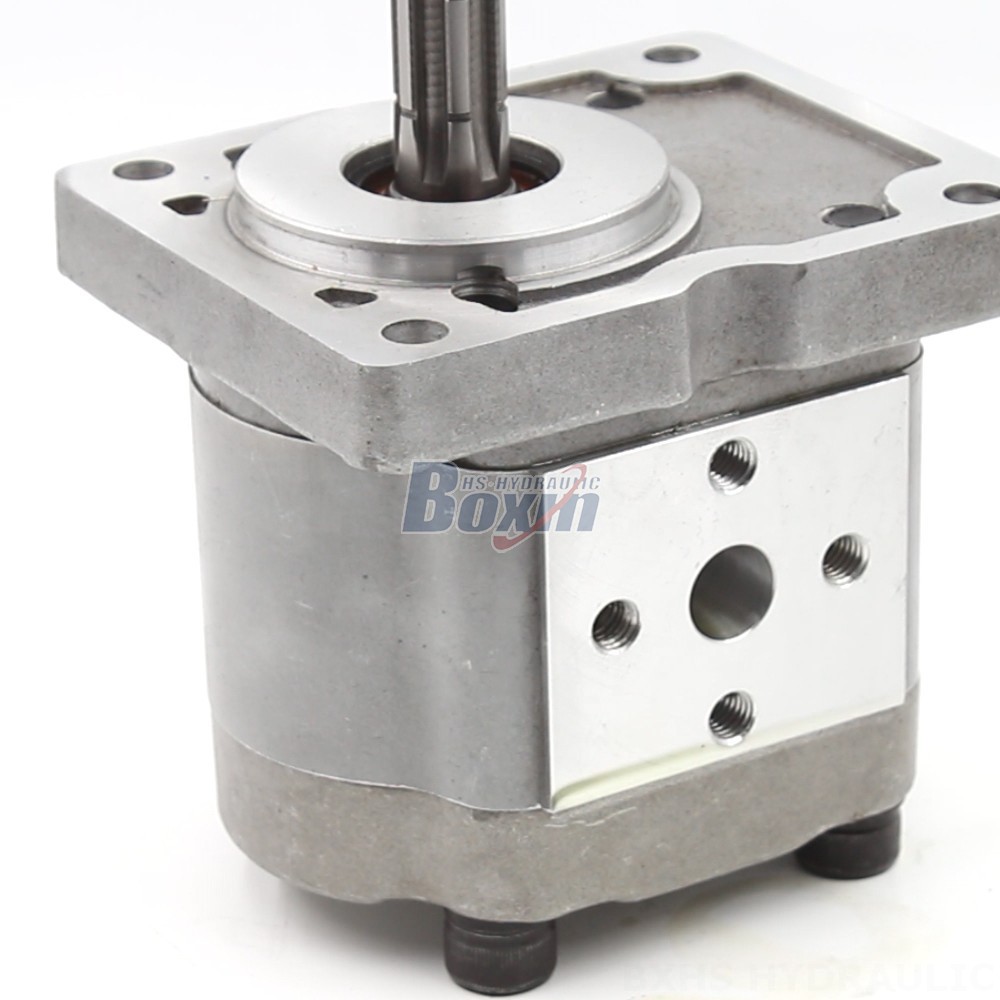

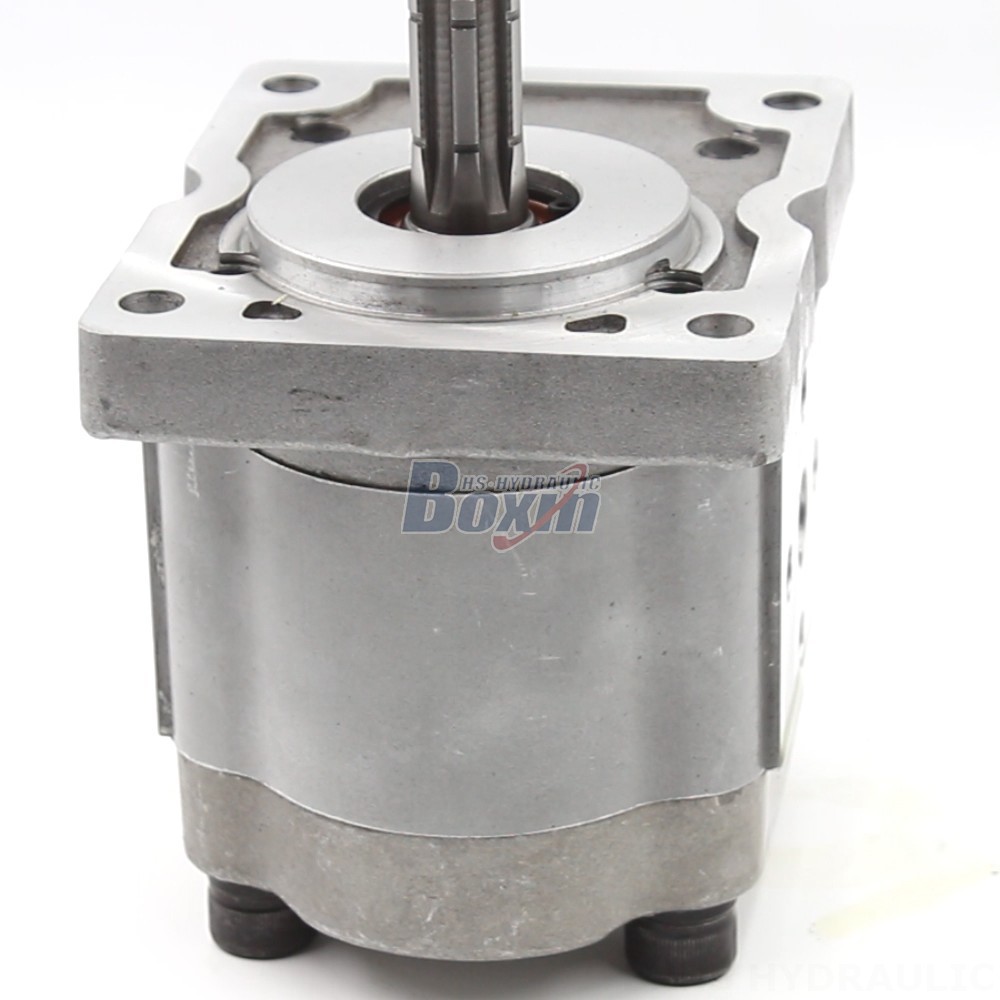

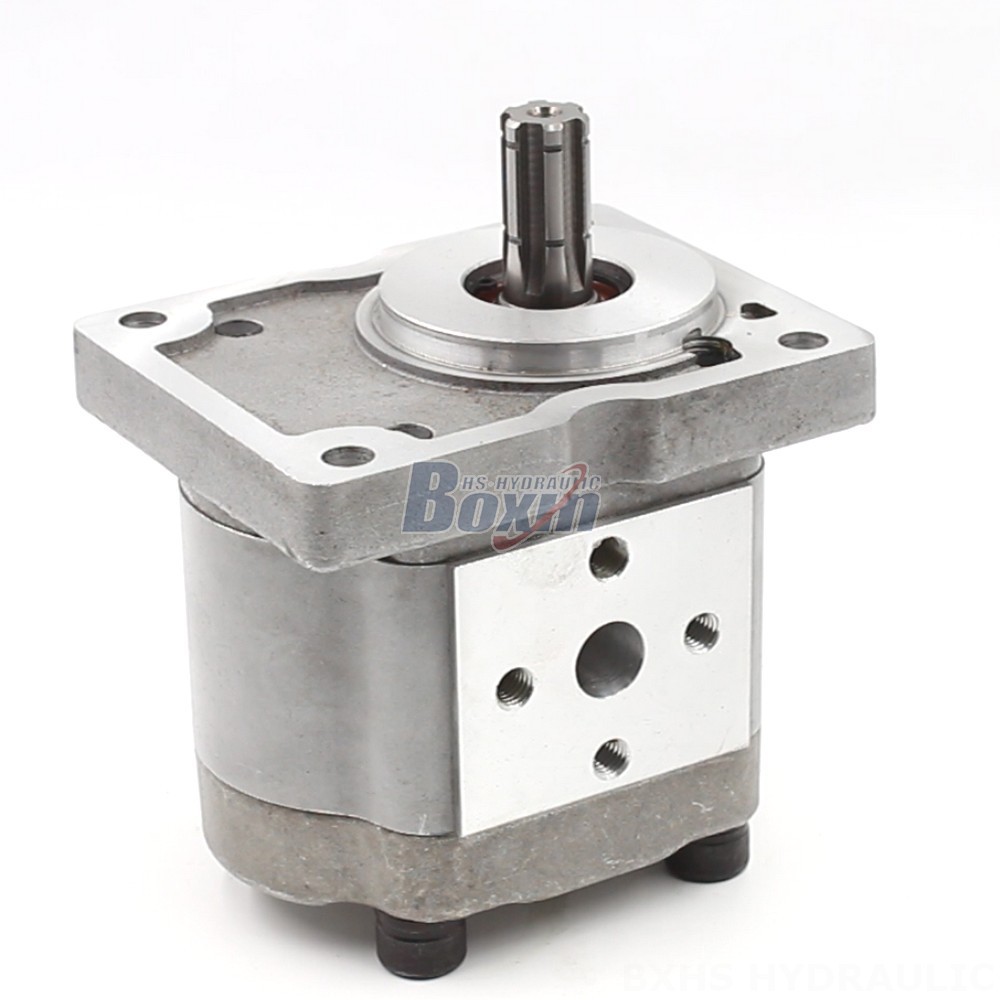

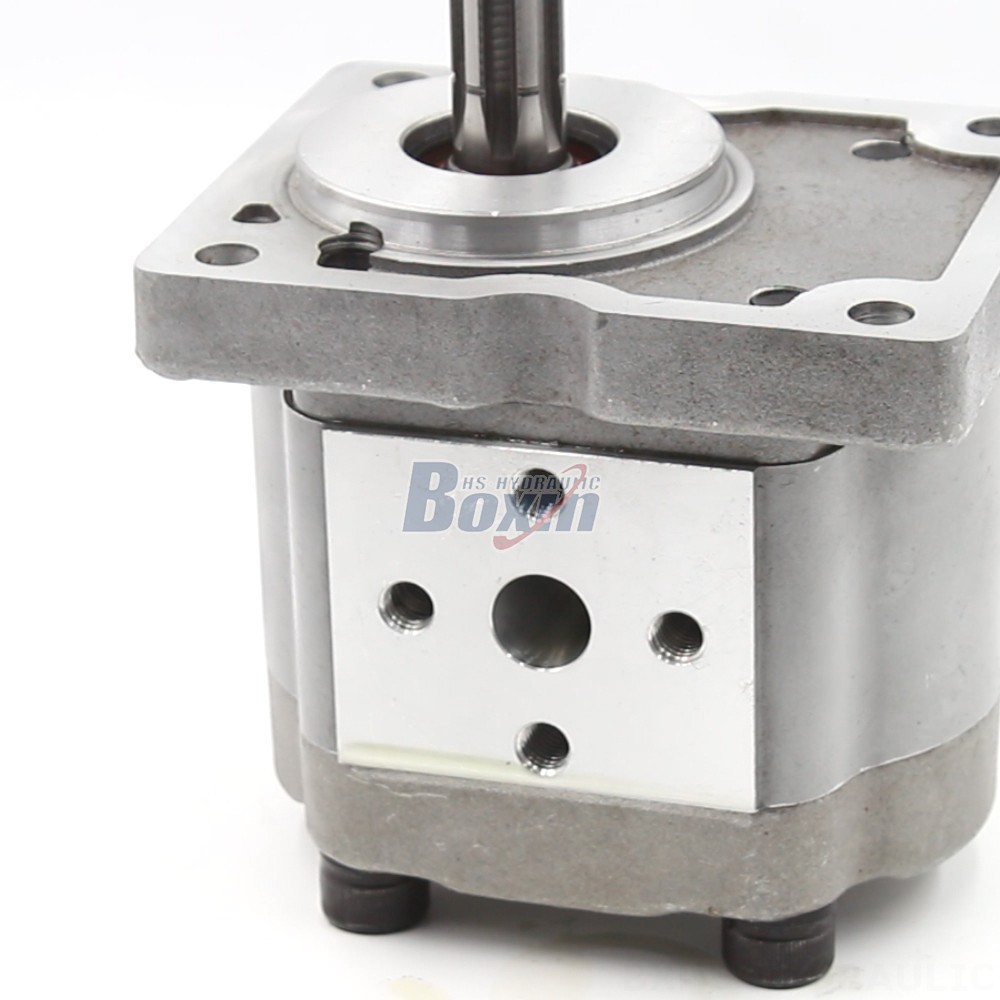

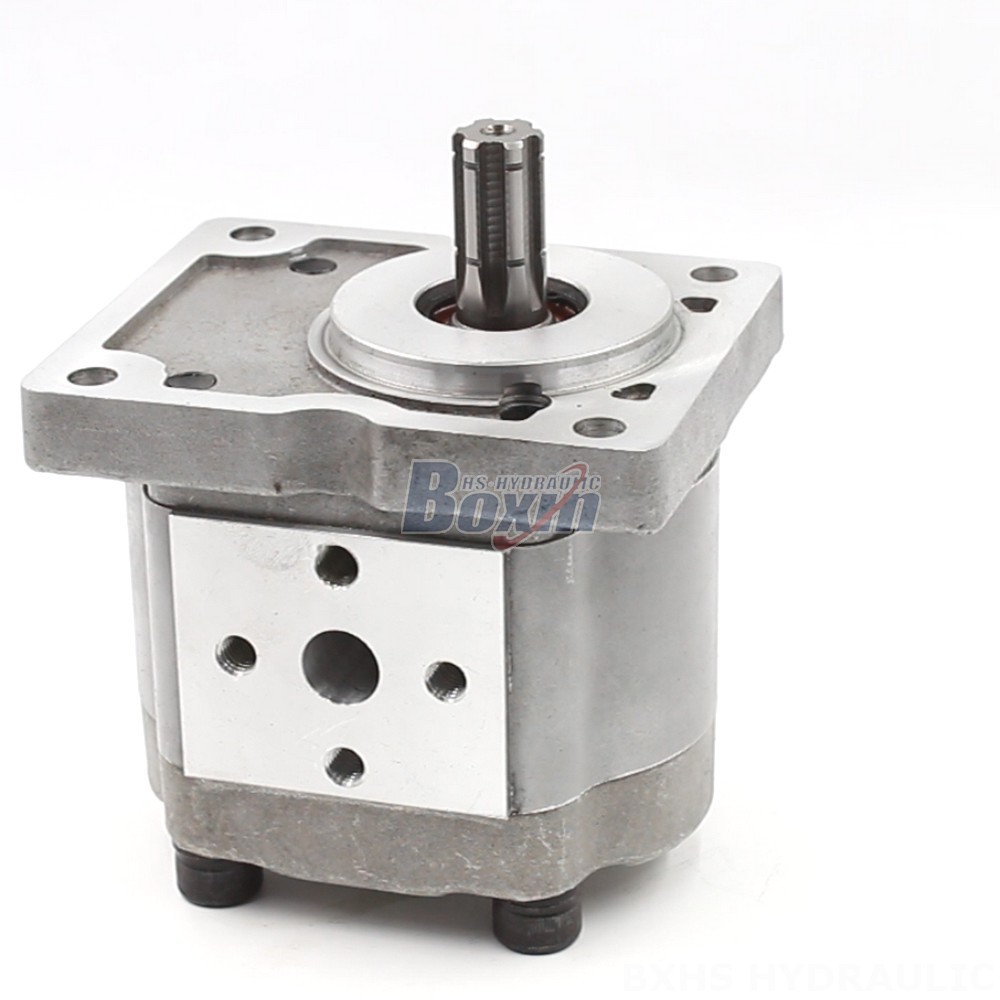

A high-quality 10 cc/rev hydraulic gear pump, designed for use in a wide range of industrial applications. With a rated pressure of 18 MPa and a rated speed of 2000 r/min, this pump is capable of delivering reliable performance in even the most demanding conditions. It is constructed from durable aluminium and features a B-Square flange and an involute spline shaft. It is part of the NSH series and is commonly used in material handling, construction, earth moving, agriculture, and industrial vehicle applications.
| Serie NSH Pompa a ingranaggi idraulica Parametri | |
|---|---|
| Cilindrata | 10 cc/giro, 32 cc/giro, 40 cc/giro, 50 cc/giro, 100 cc/giro |
| Pressione nominale | 18 MPa (2610 psi) |
| Pressione massima | 20 MPa (2900 psi) |
| Velocità nominale | 2000 giri/min |
| Velocità massima | 4200 giri/min |
| Rotazione | L: Sinistra (in senso antiorario) |
| Materiale | Alluminio |
| Struttura | Pompa a ingranaggi esterna |
| Versione flangia | Flangia quadrata di tipo B |
| Tipo di albero | X: Scanalatura evolvente |
**10 cc/rev Hydraulic Gear Pump**
**Product Specifications:**
* Displacement: 10 cc/rev
* Rated Pressure: 18 MPa (2610 psi)
* Rated Speed: 2000 r/min
* Max Speed: 4200 r/min
* Rotation: Left (counter-clockwise)
* Structure: External Gear Pump
* Material: Aluminium
* Flange Version: B-Square Flange
* Shaft Type: Involute Spline
* Series: NSH Series
**Applications:**
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models:**
* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Telehandler
* Midi-Excavator
* Mini-Excavator
* Skid Steer Loader
