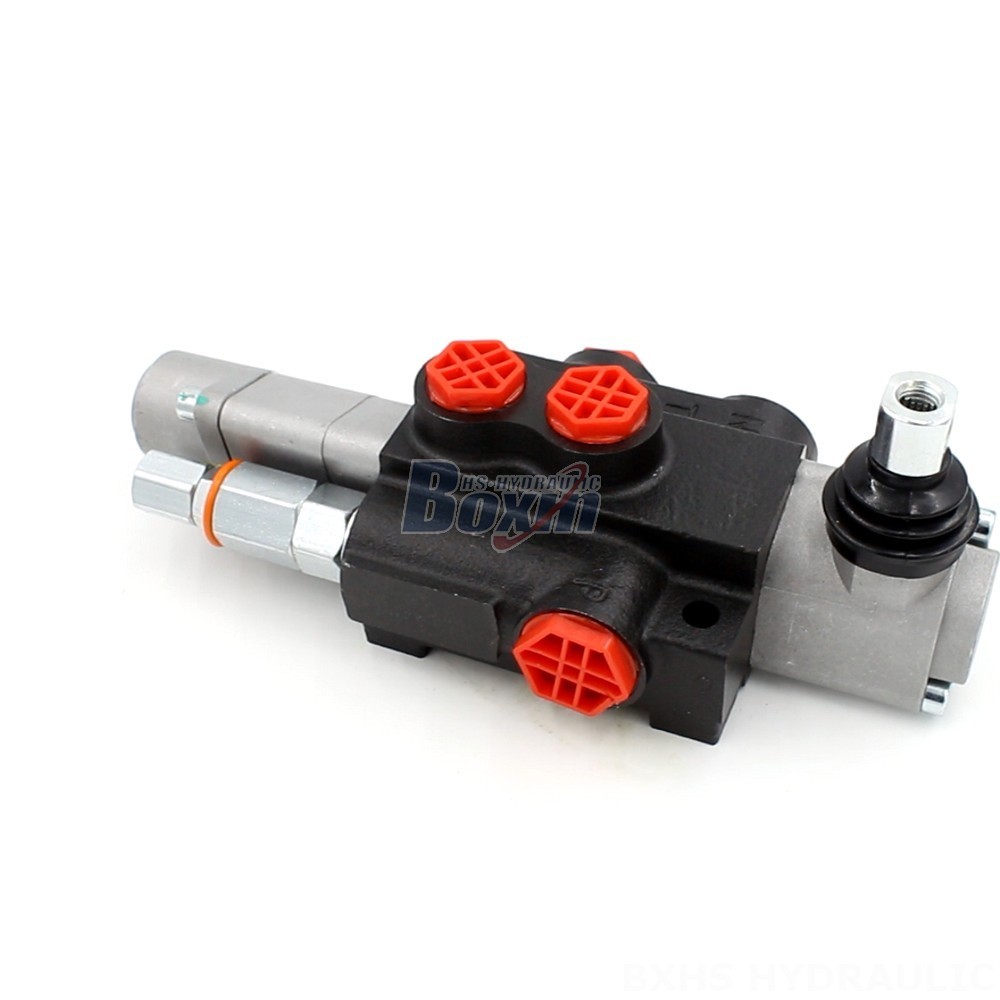

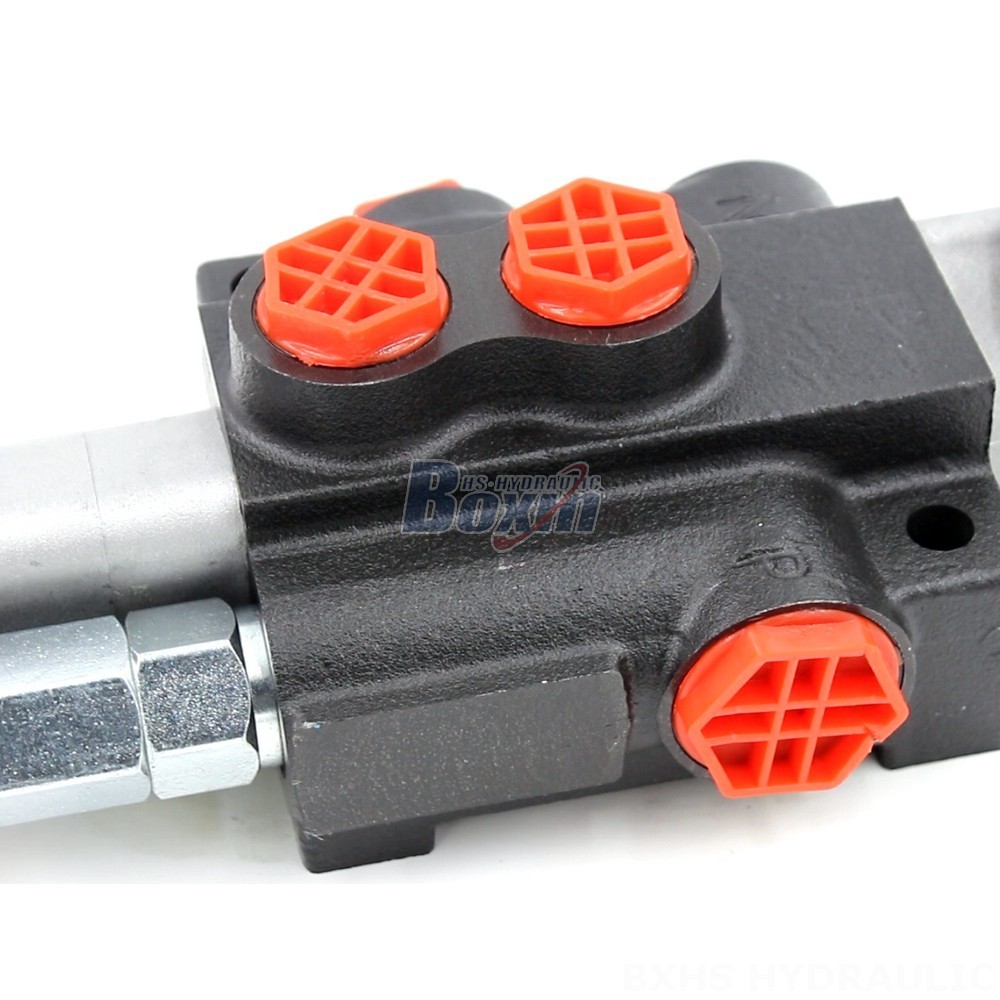

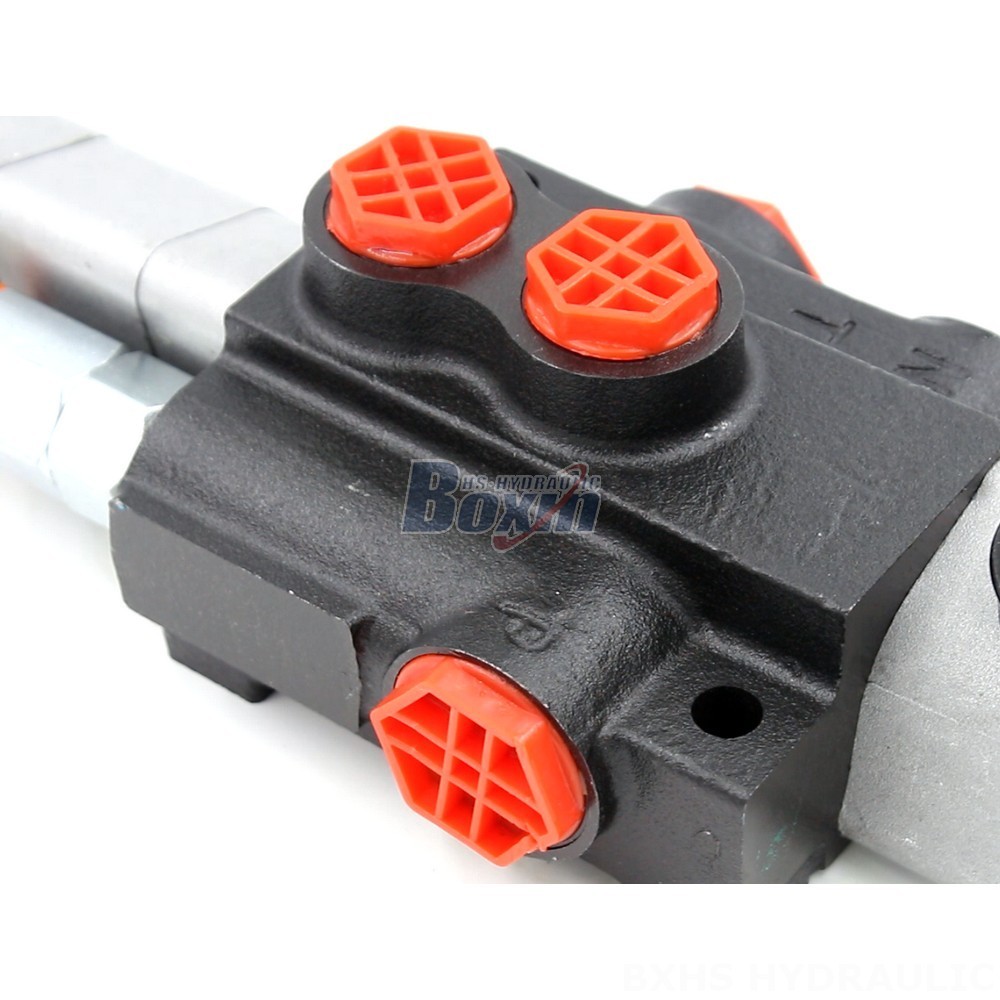

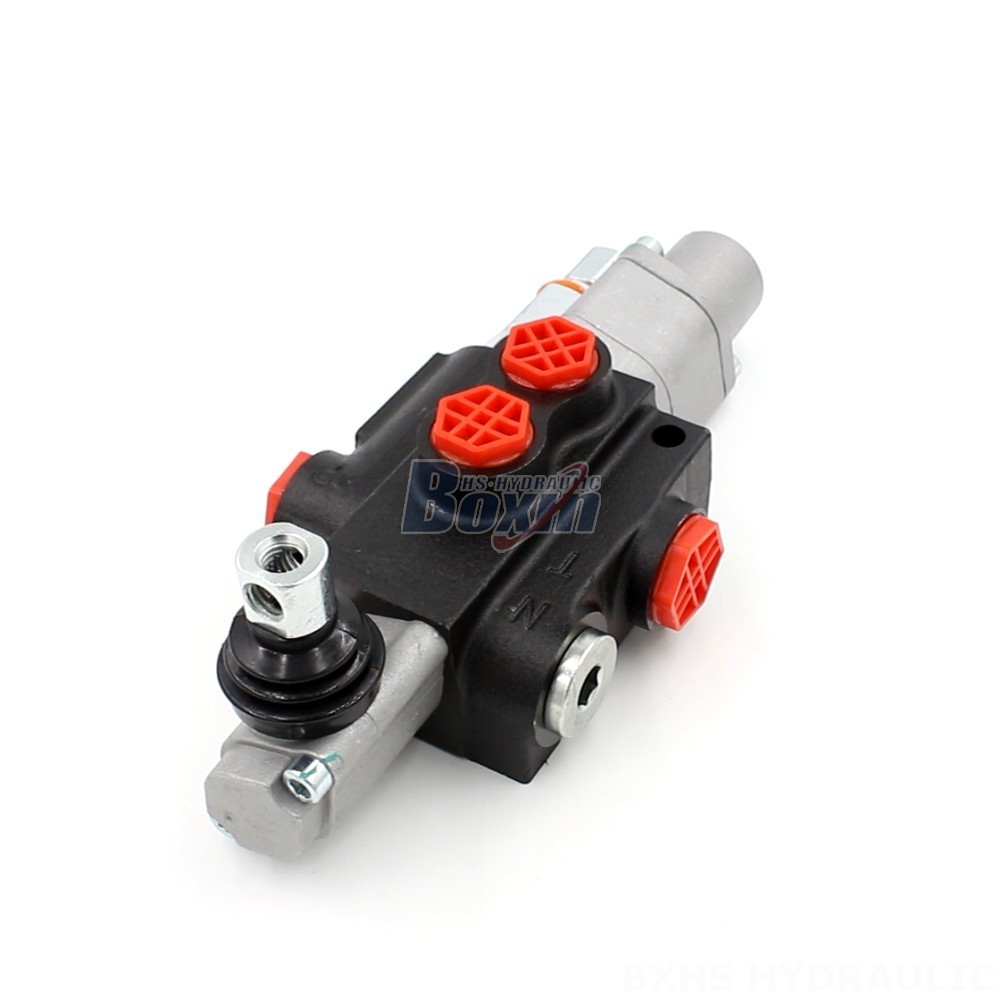

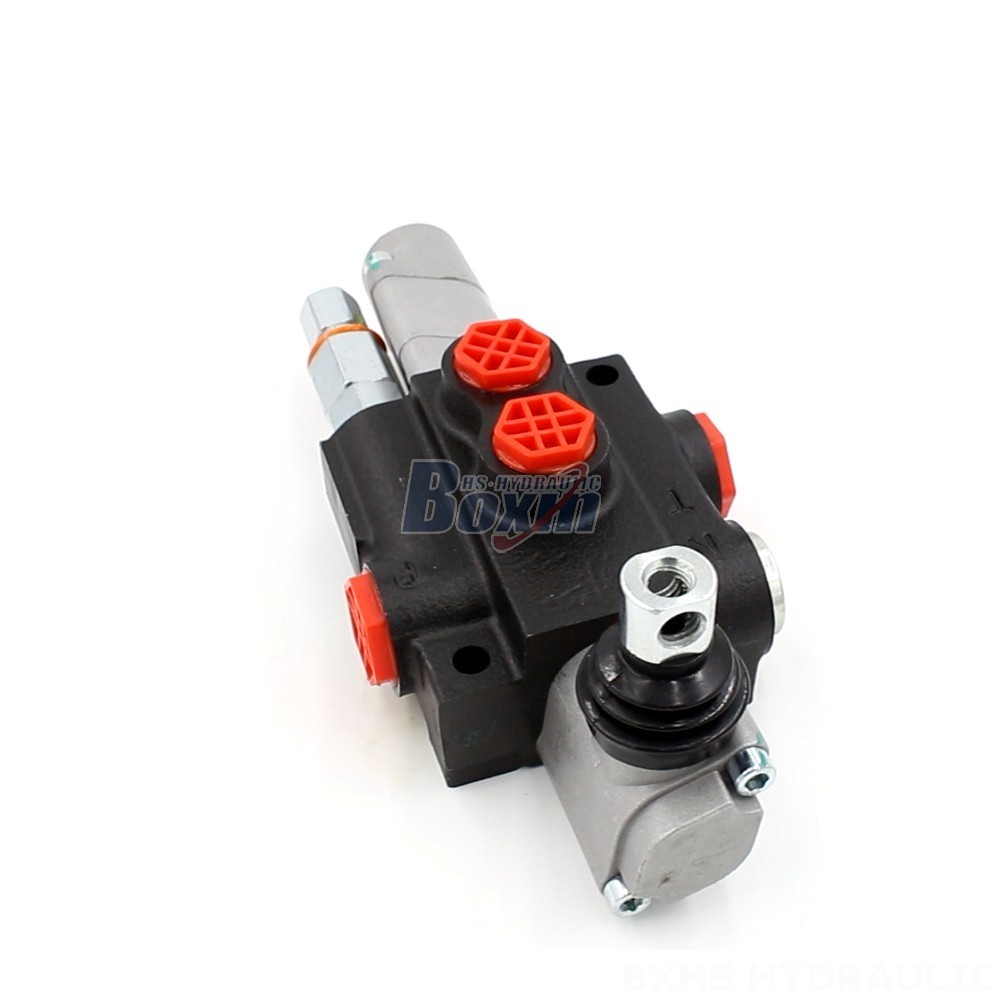

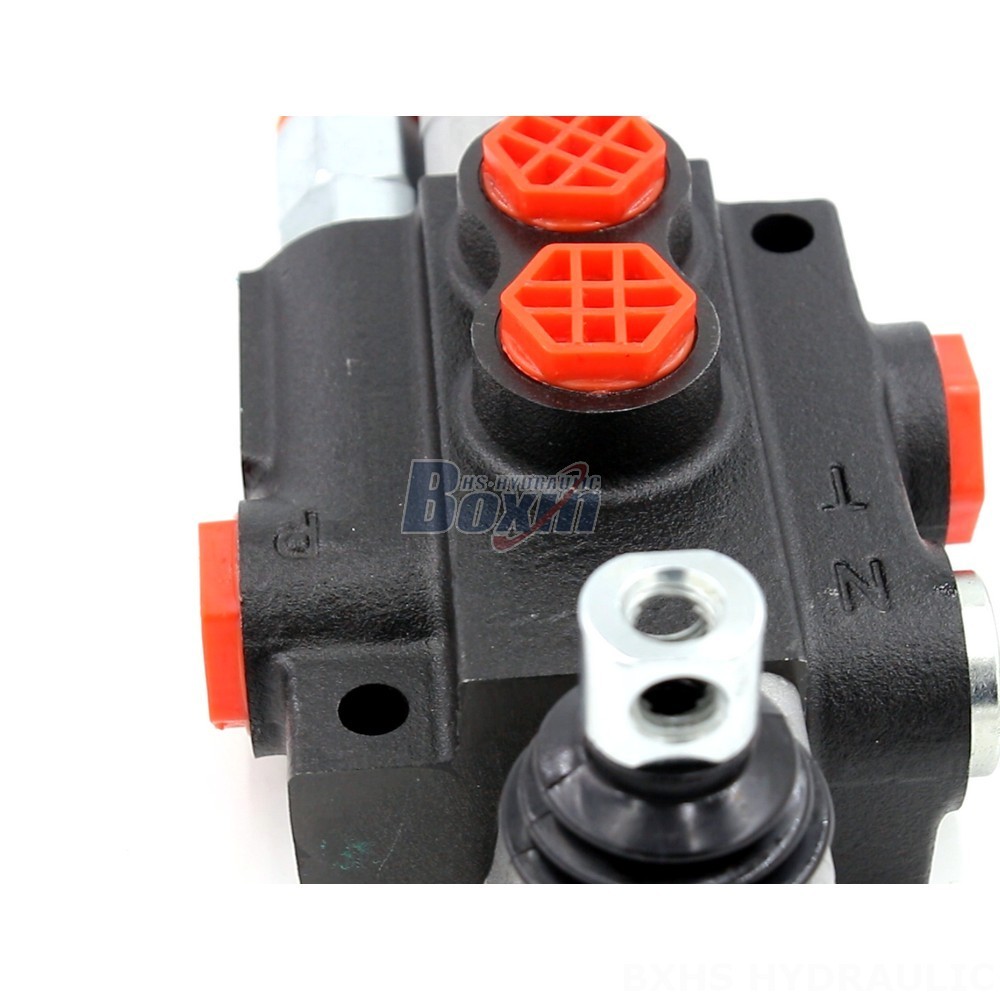

This Electro Pneumatic Control 1-Spool Hydraulic Directional Valve is a reliable and efficient solution for controlling hydraulic systems in various applications, including material handling, construction, agriculture, and industrial vehicles. It features manual control, a monoblock valve structure, and a rated flow of 40 L/min. The valve is customizable and available directly from the factory.
| Serie P40 Valvola direzionale monoblocco Parametri | |
|---|---|
| Metodo di Controllo | Manuale, Pneumatico, Elettropneumatico, Elettroidraulico, Solenoide, Idraulico, Idraulico e Manuale, Cavo, Joystick, Solenoide e joystick, Manuale e joystick, A solenoide e a cavo |
| Spoo | 1 Spola, 2 Spole, 3 Spole, 4 Spole, 5 Spole, 6 Spole, 7 Spole |
| Intervallo di temperatura ambiente | -40°C to +80°C (-40°F to +176°F) |
| Tipo di struttura | Valvola monoblocco |
| Sezione | Sezione 1, Sezione 2, Sezione 3, Sezione 4, Sezione 5, Sezione 6, Sezione 7 |
| Intervallo di viscosità operativa | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| Portata nominale | 40 L/min (10.5 US gpm) |
| Pressione massima | 250 bar (3600 psi) |
| Attacco di ingresso | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Attacco di uscita | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Dimensione attacco | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Series Electro Pneumatic Control 1-Spool Hydraulic Directional Valve is a high-performance valve designed for demanding applications. It offers a compact and robust design, with a single spool and a rated flow of 40 L/min. The valve can withstand a maximum pressure of 250 bar and operates within a viscosity range of 15 - 75 mm²/s. It features manual control for precise operation. The valve is suitable for a wide range of applications, including telehandlers, forklifts, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, tractors, and front-end loaders. Its versatility and reliability make it an ideal choice for various industries. The valve is available directly from the factory and can be customized to meet specific requirements.
